Description
Specifications:
| Voltage: | 48V |
| Power: | 500W |

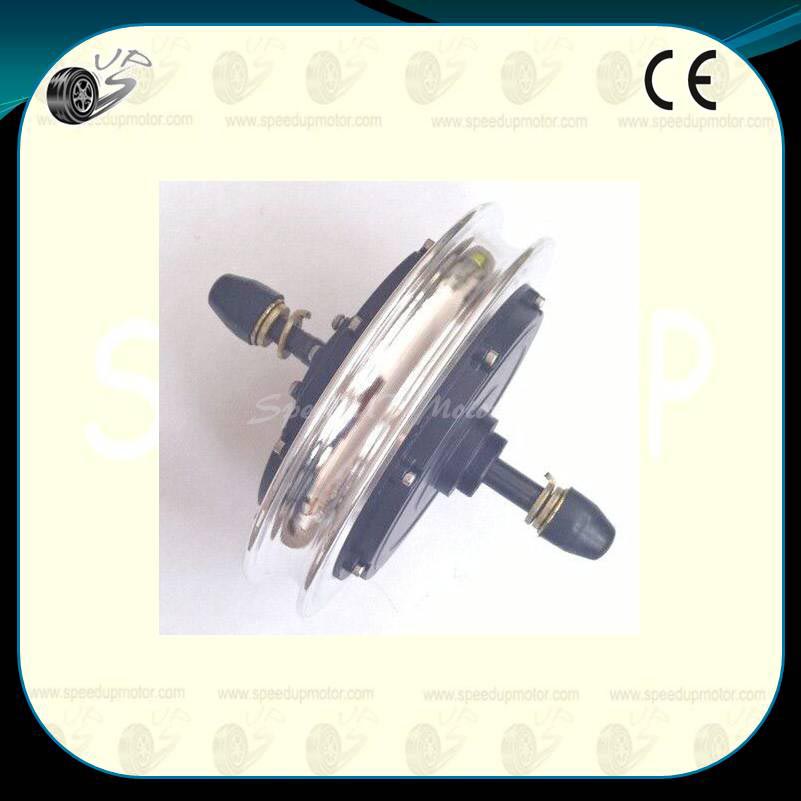

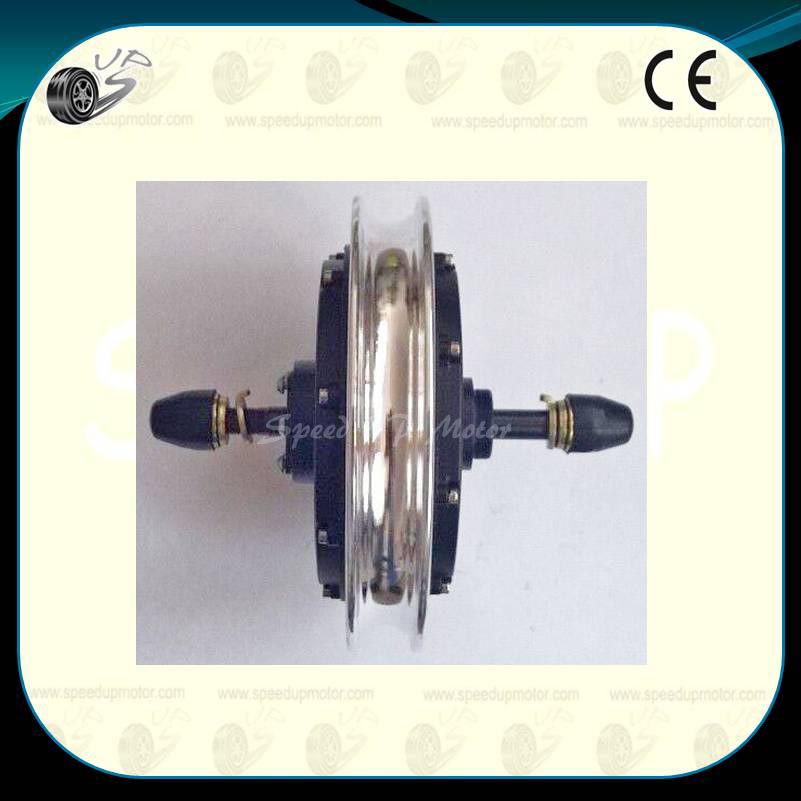

| Motor Type: | Brushless Gearless Hub Motor |
| Motor Net Weight: | 4.6kgs |
| Motor Diameter: | 148mm |
| Motor shaft diameter: | M14 |
| Motor shaft length: | 165mm |
| Motor cable length: | 150cm |
| Hall Sensor Quantity: | 3pcs |
| Max. Speed: | 350RPM |
| Max. Torque: | 15N.M |
| Magnet Body Size: | 42*11.65*11.65mm |
| Brake: | Disc brake roto can be installed by 6 screws |
| Min. Fork Width Requirement: | Min.10cm |
| Corresponding Controller: | 48V500W Controller |

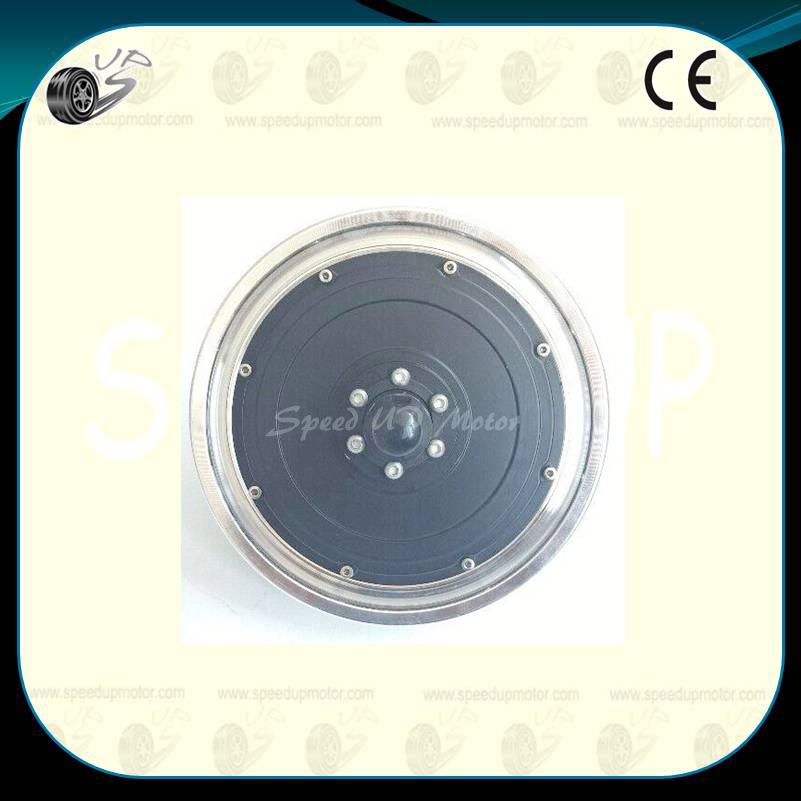

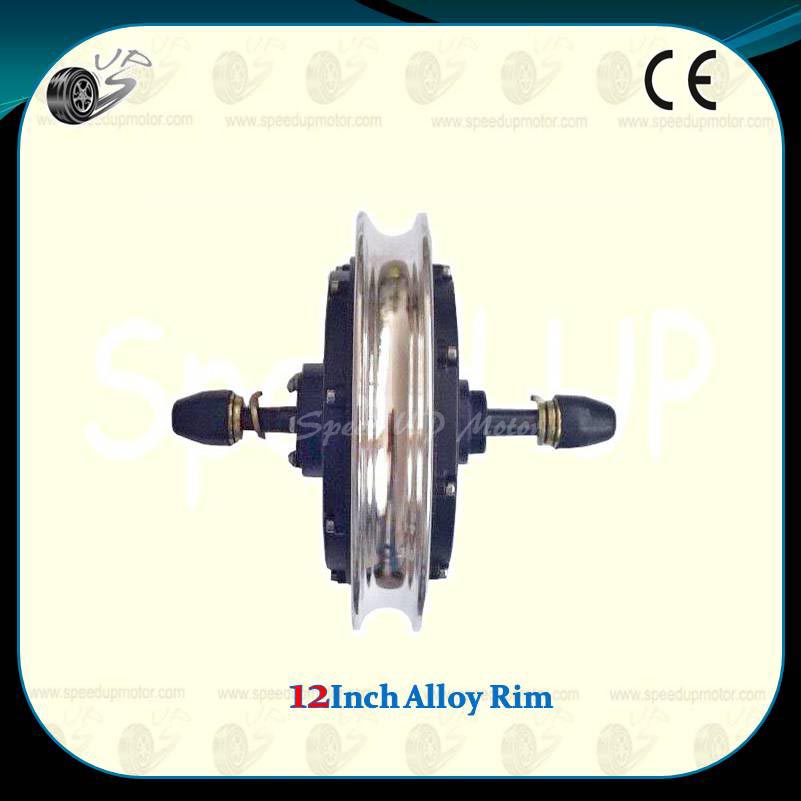

| Available Wheel Size: | 12” Alloy wheel |
Design Options:
- Operating voltages to suit
- Custom shaft(Axis)sizes/profiles
- Tailored performance profiles
- Special OEM configurations
