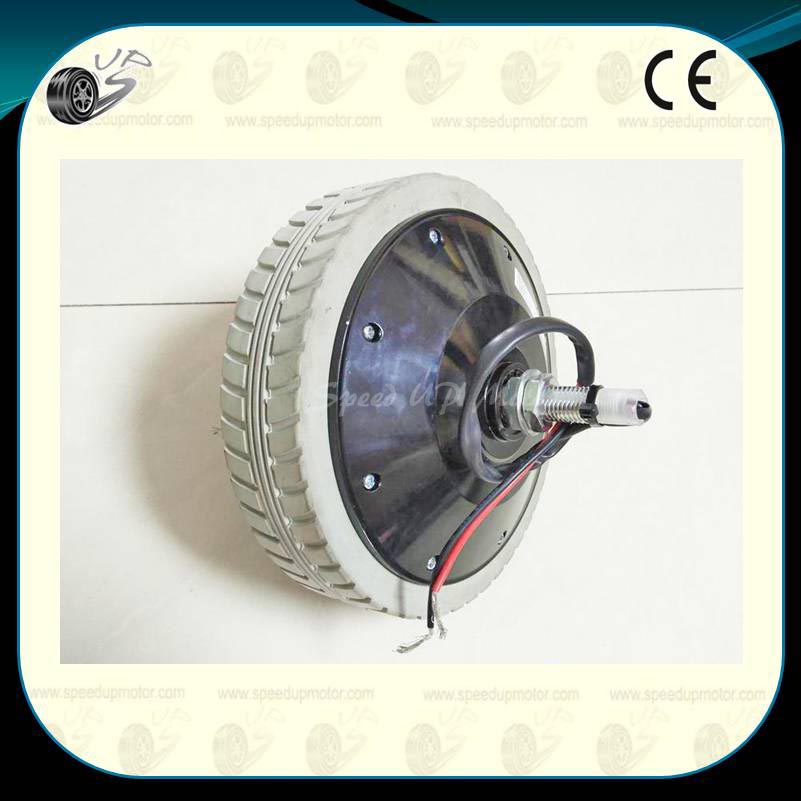

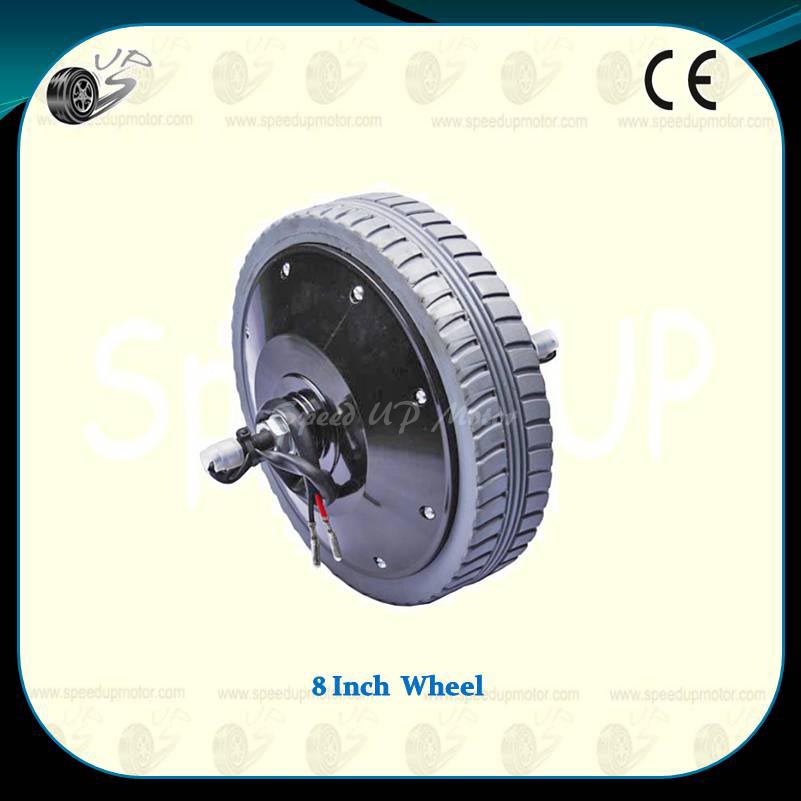

24V 250W DC Wheel Hub Motor,Brush Gear Printed Armature,1DY-E2B

Home DC Hub Motor Brush Hub Motor 24V 250W DC Wheel Hub Motor,Brush Gear Printed Armature,1DY-E2B

24V250W, 100RPM   DC Brushed Hub Motor

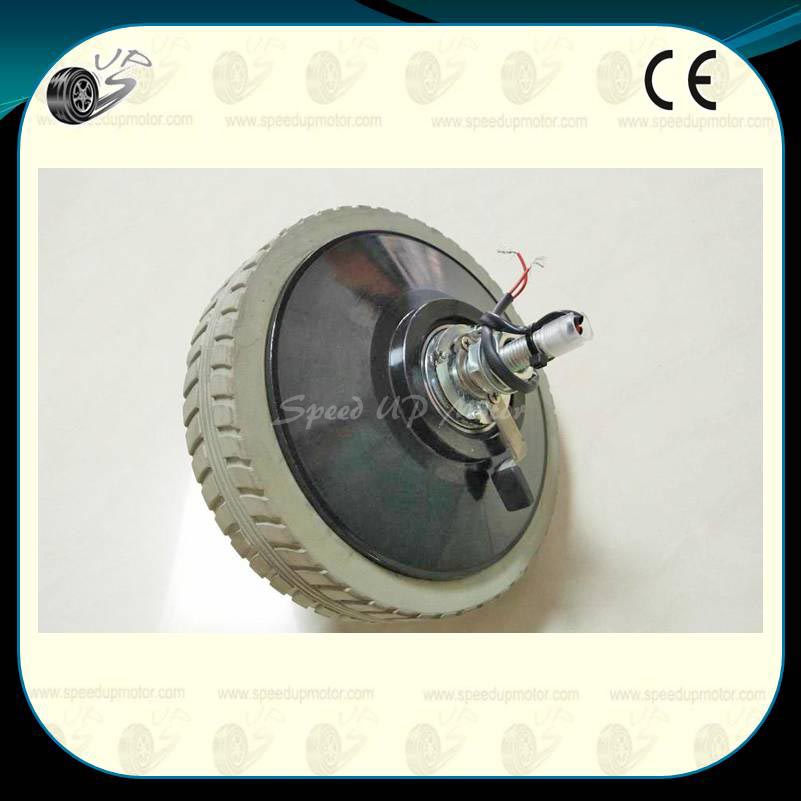

8Inch Powered Wheel with EMB Brake

 Most use in Electric Vehicle, Mecical bed/Hospital Bed/ Electric Forklift and So on.

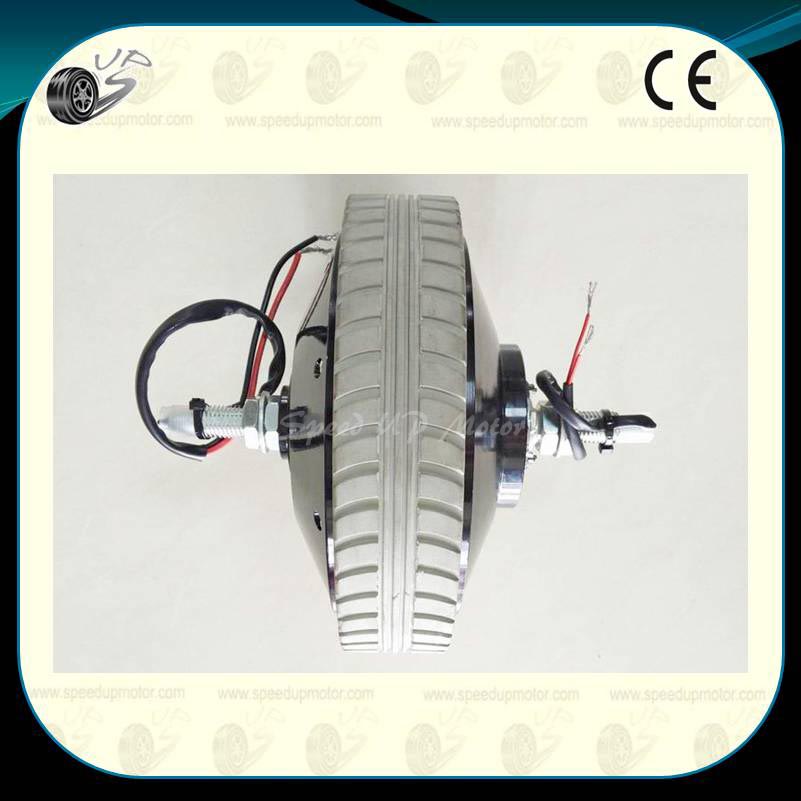

  • Double output Axis ,electromagnetic brake and manual clutch brake.
  • Bigger starting torque, wide speed range.
  • Low speed running and good performance for commutation ability
  • Small volume and high efficiency
  • Rated voltage can be 24V/36V
  • Rated output power can be 180/200/250/300W
  • Rated speed 70/100/130/180rpmor customized



Categories: Brush Hub Motor, DC Hub Motor Tags: 100rpm low speed brushed geared hub dc motor, 24v wheel drive dc motor, 8Inch Powered Wheel with EMB Brake, big power 250w 24v dc brushed geared hub motor, big power 250w brushed dc hub motor for electric vehicle, brush hub motor, brushed dc hub motor with gearbox, brushed hub dc motor, dc motors, electric forklift 8inch powered wheel with brush hub dc drive motor, electric mobility equipment motor dc brushed wheel, electric scooter powered wheel brushed dc motor, electric scooter wheel motor with emb brake, electric vehicle wheel drive motor, hub motor with gearbox, hub motors, low speed big torque hub motor
  • Description

Description

Specifications:

Product types:  Brush DC HUB motor
 Model:  1DY-E2B
 Rated power:  250W
 Rated voltage:  24V
 Rated speed  100RPM
 Custom made:  Yes
 Diameter:  210mm
 Thickness:  143.6mm
 Output axis  Double

 Design Options:

  1. Operating voltages to suit
  2. Custom shaft(Axis)sizes/profiles
  3. Tailored performance profiles
  4. Special OEM configurations
  5. Gear ratio selections

Competitive Advantage:

  1. Use thin plate-type printed armature winding
  2. High strength and wear-resistant gear shifting system.
  3. Built-in brake with electromagnetic clutch,and support manual clutch.
  4. Bigger starting torque, wide speed range.
  5. Low speed running and good performance for commutation ability
  6. Small volume and high efficiency
