Description
Specifications:
| Voltage: | 36V |
| Power: | 350W |

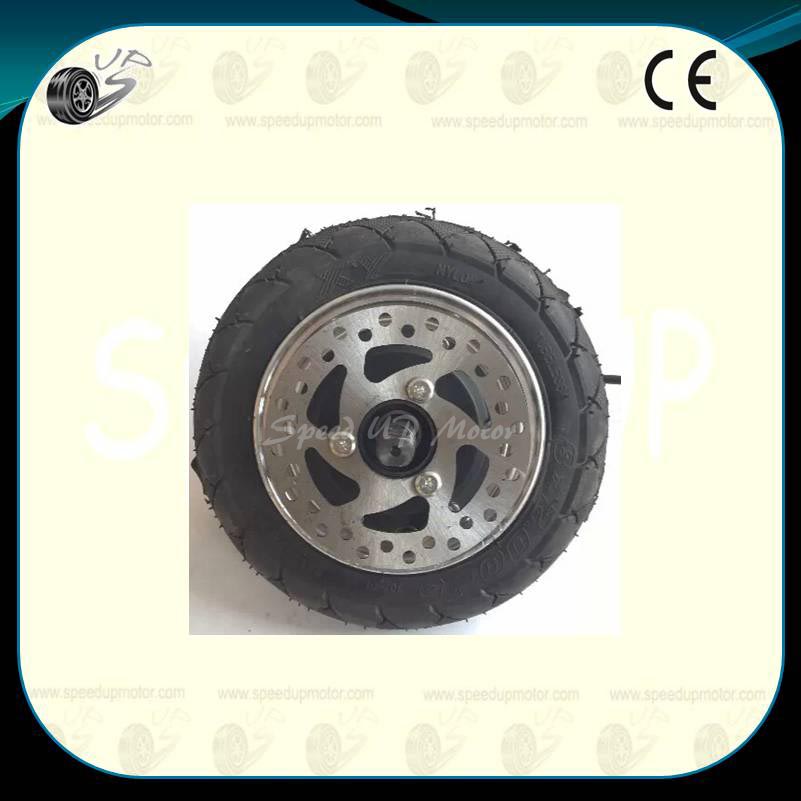

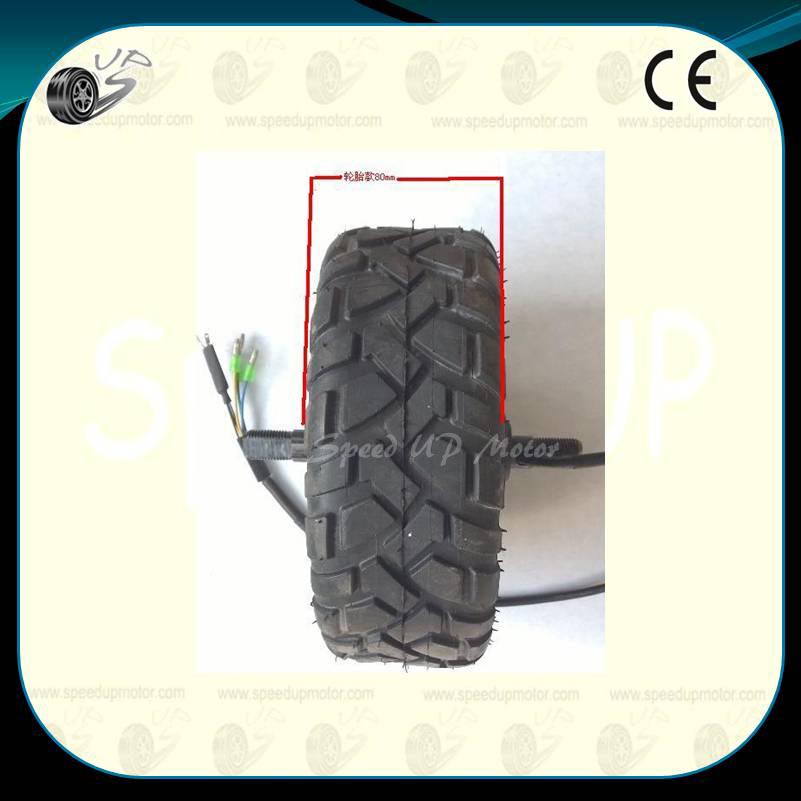

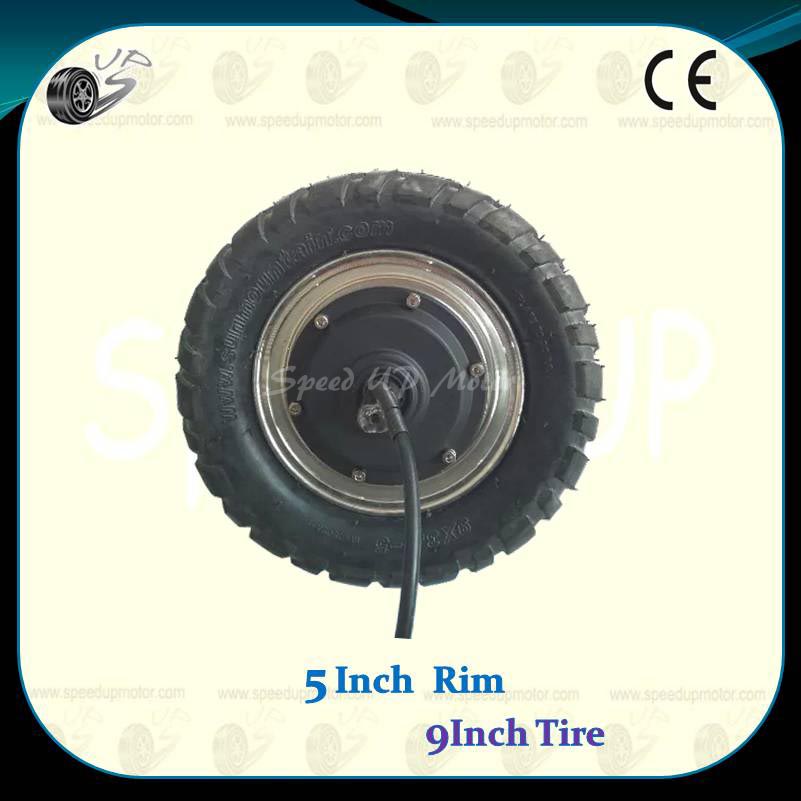

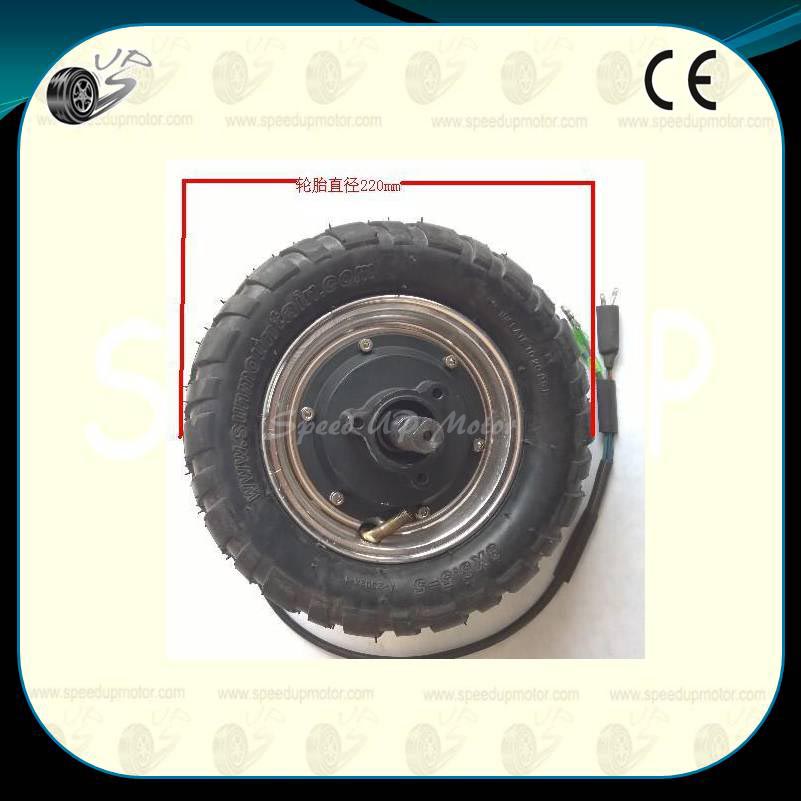

| Motor Type: | Brushless Gearless Hub Motor |
| Net Weight: | 3.4kgs (include tire) |
| Diameter: | 200mm |
| Motor shaft diameter: | M14 |
| Motor shaft length: | 172.5mm |
| Motor cable length: | 50-120cm |
| Hall Sensor Quantity: | 3pcs |
| Rated Speed: | 500-900RPM |
| Rated Torque: | 15-25N.M |
| Brake: | Disc Brake |
| Drum Brake for option | |
| Min. Fork Width Requirement: | Min.122.5mm |
| Corresponding Controller: | 36V350W Controller |
| Tire wide: | 50mm |
Design Options:
- Operating voltages to suit
- Custom shaft(Axis)sizes/profiles
- Tailored performance profiles
- Special OEM configurations
