Description
Specifications:
| Voltage: | 24V/36V/48V |
| Power: | 100W-200W |

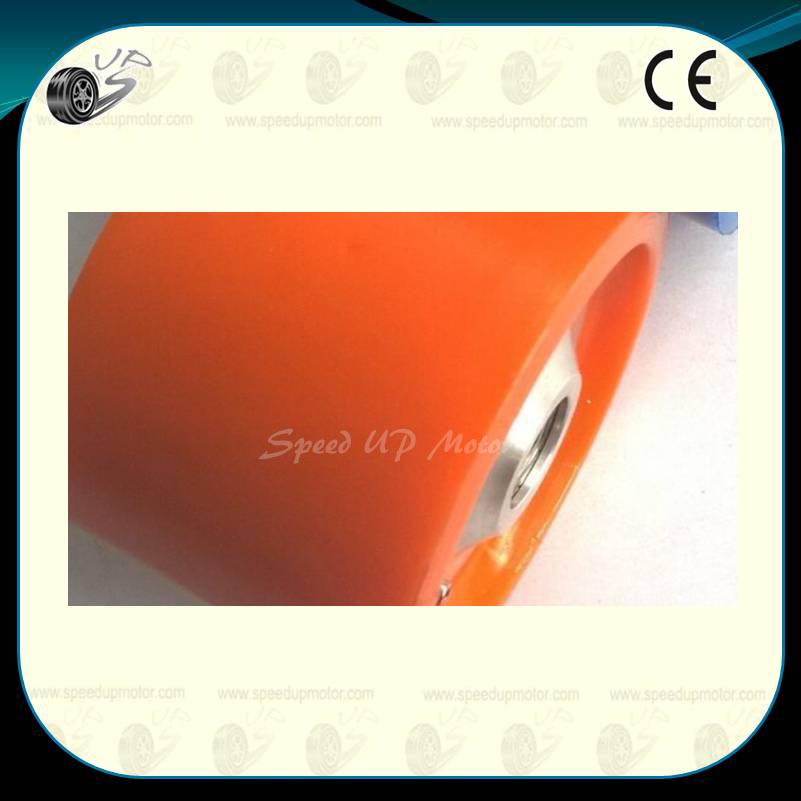

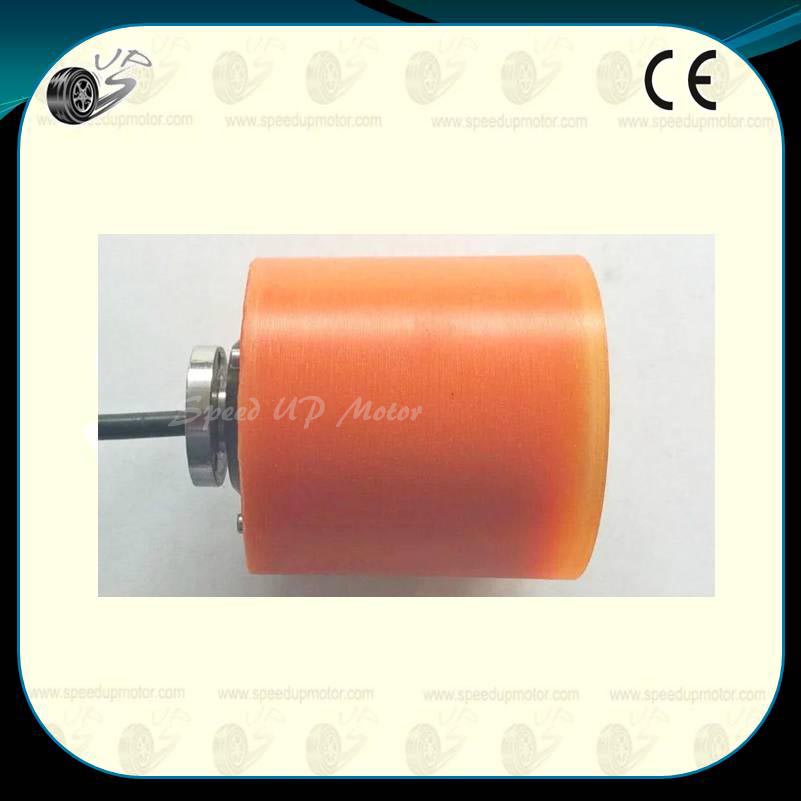

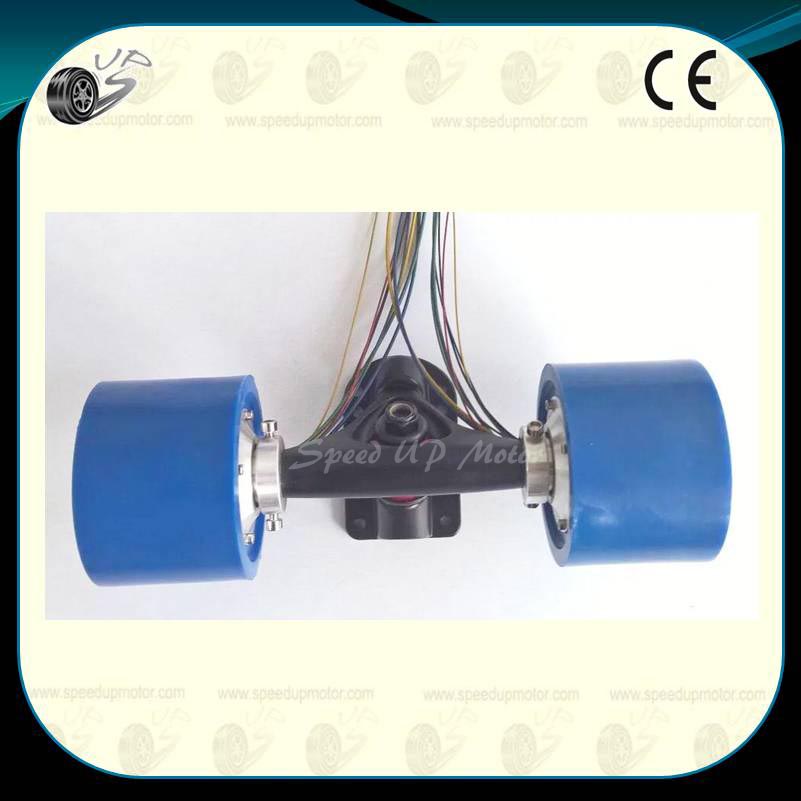

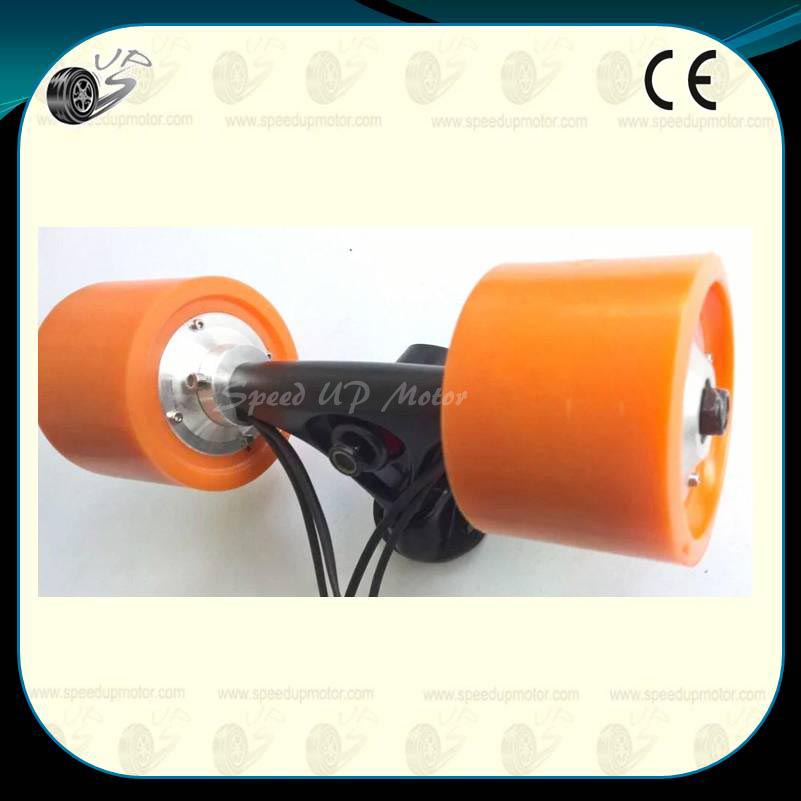

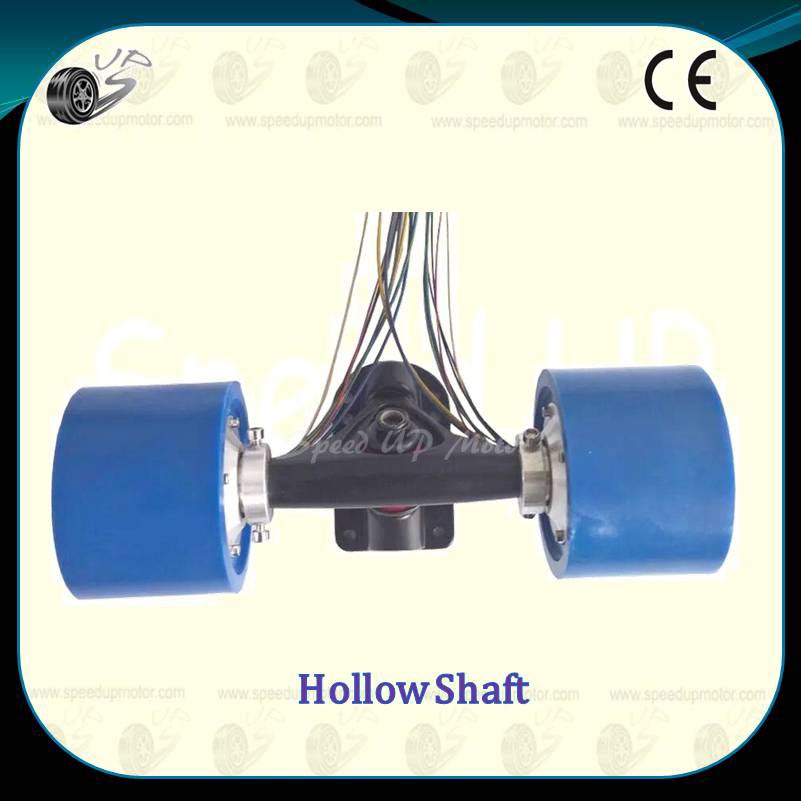

| Motor Type: | Brushless Gearless Hub Motor |
| Motor Net Weight: | 0.7kgs |
| Motor Diameter: | 70mm(include tire) |
| Tire wide: | 52mm |
| No load Speed: | 24V900rpm(0.35A) 36V1350rpm(0.38A) 48V1850rpm(0.42A) |
| Rated speed | 700-1800rpm |
| Rated Torque: | 3-5NM |
| Cable Length: | 20-50cm |
| Shaft dia: | M17 |
| Corresponding Controller: | 24/36/48V small power Controller |
| Hall Sensor Quantity: | 3pcs |
Design Options:
- Operating voltages to suit
- Custom shaft(Axis)sizes/profiles
- Tailored performance profiles
- Special OEM configurations
