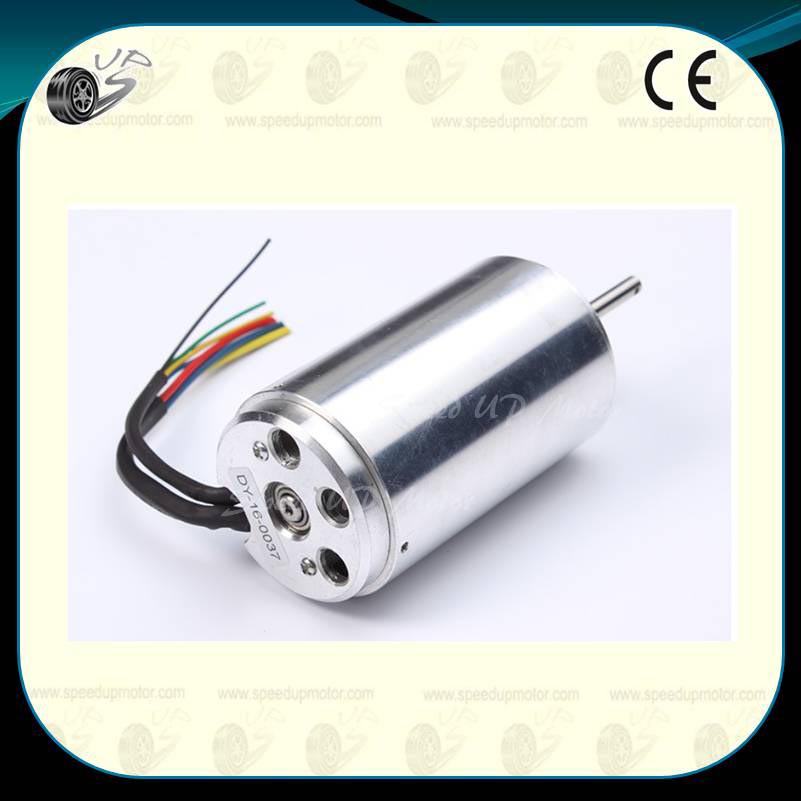

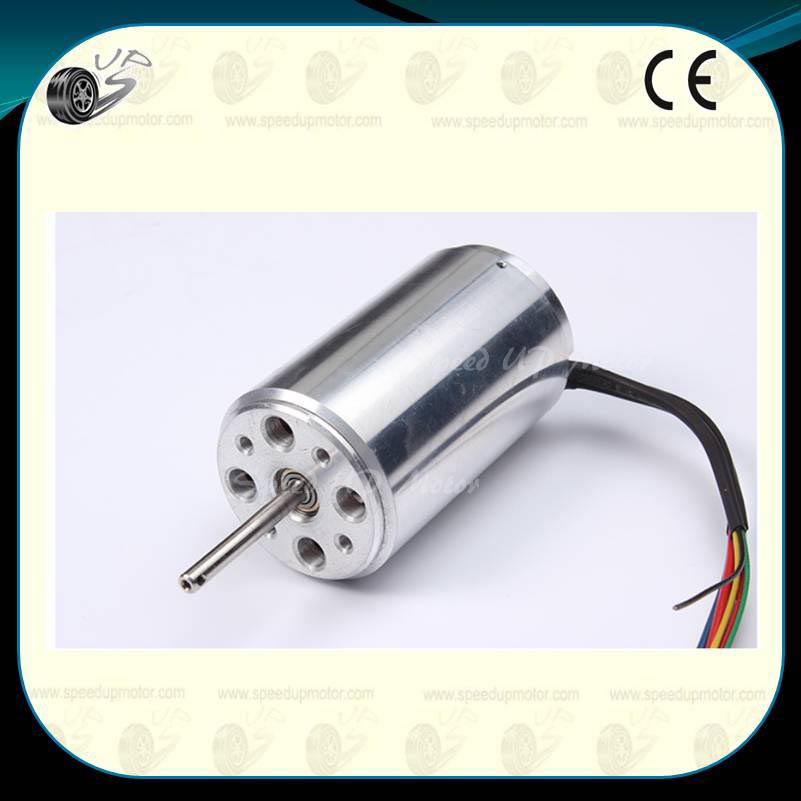

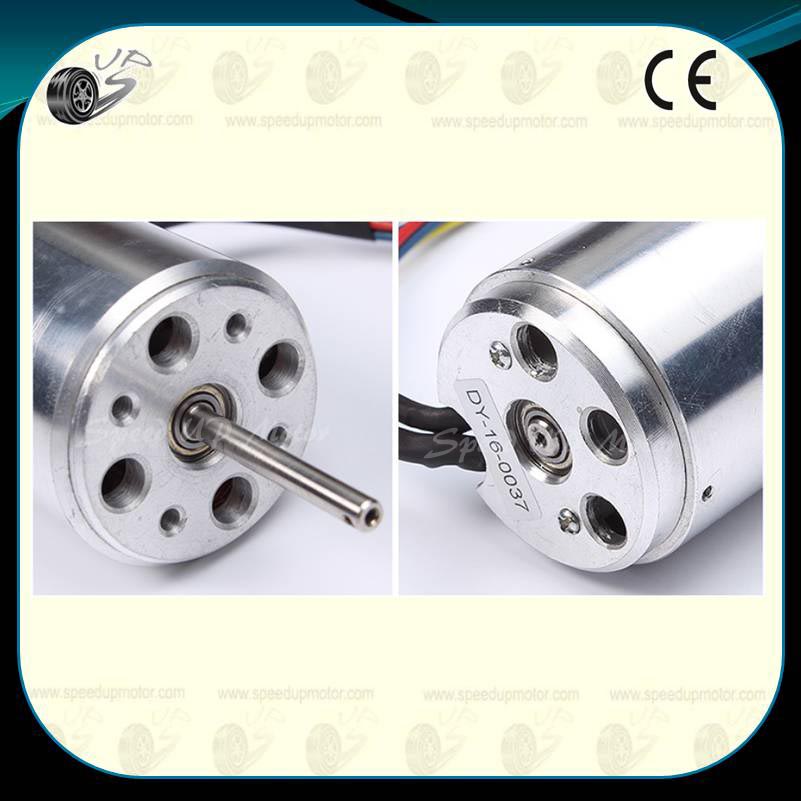

Light Weight and Large Output Industrial BLDC Motor, Cute Robot Motor

Description

Specifications:

Product types:	BLDC motor
Model:	2DY-F
Rated power:	180W
Rated voltage:	28 (V)
Rated speed	4300RPM
Custom made:	Yes

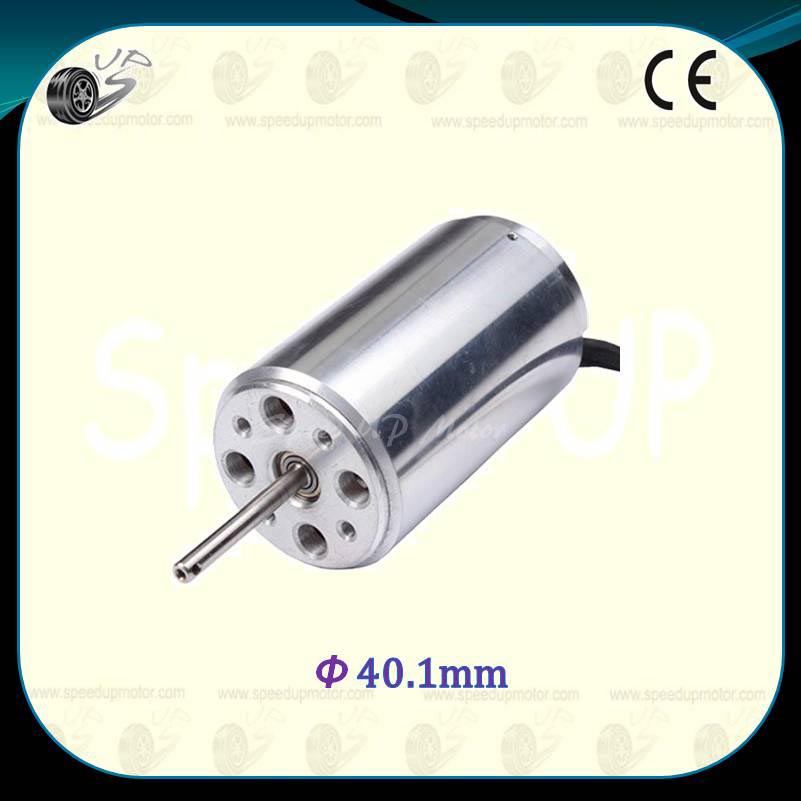

Diameter:	40.1mm
Diameter for axis	4mm

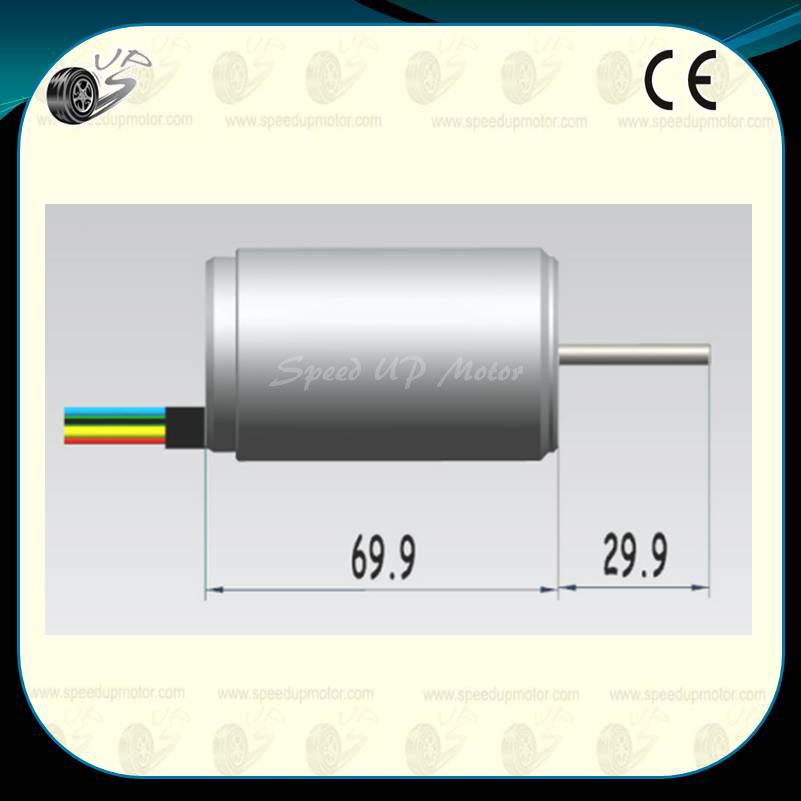

Motor length	69.9mm
Output axis length	29.9mm

Design Options:

1. Operating voltages to suit
2. Custom shaft(Axis) sizes/profiles
3. Tailored performance profiles
4. Special OEM configurations

Competitive Advantage:

1. Low speed high power operation, can save the reducer directly drive big load;
2. Soft start soft stop, brake performance is good, can save the original mechanical brake or electromagnetic braking device
3. High efficiency, no excitation loss of the motor itself and carbon brush loss, eliminating the multilevel reduction consumption, comprehensive energy saving rate can reach 20%~60%
4. High reliability, good stability, strong adaptability, simple repair and maintenance;
5. Bump resistance vibration, low noise, small vibration, smooth operation, long service life;
6. No spark, especially suitable for the places with explosive, explosion proof type;
